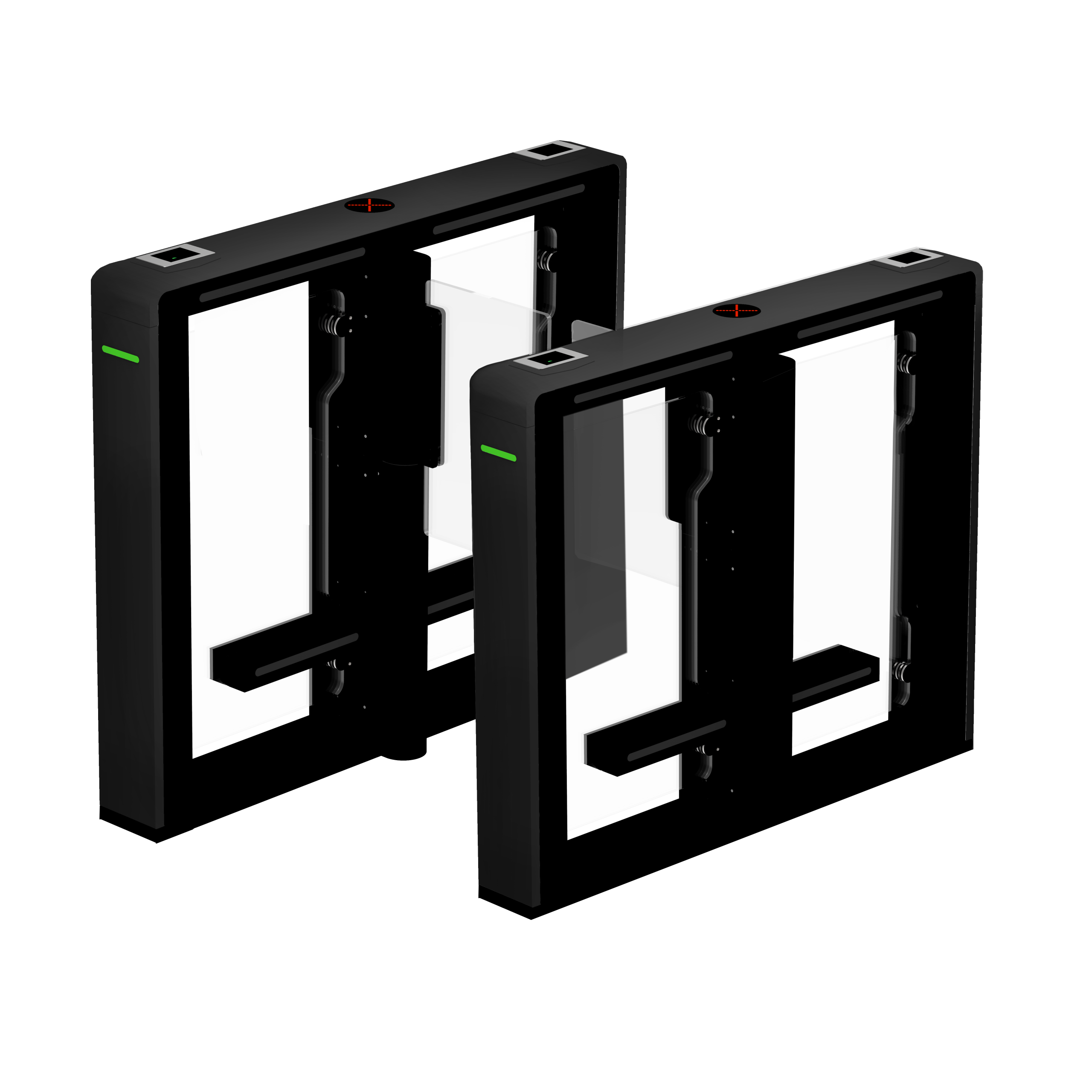

ZKTeco SBTL7000 Swing Barrier Optical Turnstile

The SBT1000S series is a group of single-lane swing barrier turnstiles that are compact and designed for smooth & silent operation with very little power draw. The acrylic barriers are normally held in a locked position. Users can be granted access through the turnstile with a choice of readers (sold separately).



Request A Quote

Description

The SBTL7000 is a single-lane swing barrier turnstile series designed for smooth and silent operation and draws very little power. With a compact design, the width of the cabinet is only 15 centimeters.
SBTL7000 barriers are normally held in a locked position, thus denying access to the secured side. Upon SBTL7000’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers swing automatically, thus allowing users passage to the secured side.
During a power outage, the user can push through the barrier easily to exit to safety. SBTL7000 provides both security and convenient space, all in a very durable and elegant compact design.

Data Sheet – SBTL7000 Swing Barrier Optical Turnstile



FEATURES

Reliability
Powder Coated steel casework ensures long-lasting durability.
High-quality brushless motor.
Simplify structure and connection, easy to maintain.

Safety
Barriers unlock automatically during power outages.
All smooth finish. No exposed screws.
The ergonomic design makes card and fingerprint authentication fast & simple for users.

Integration
SBTL7000 series ships already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
SBTL7000 series and associated access control readers are all factory-tested prior to shipping.
ZKTeco provides true plug & play turnstiles with the lowest possible total cost of ownership in the industry.



SPECIFICATIONS

  • Operating Temperature: -4 °F to 158 °F
  • Power Consumption: 30W running
  • Infrared Sensor: 6 pairs (option 10)
  • Indoor/Outdoor (when sheltered)
  • Lane Width: 26inch (660mm), or 36 inch (900mm)
  • Traffic Throughput: Up to 30 passages per minute
  • Dimensions Per Cabinet (L x W x H)  47 x 6 x 40 inches
  • Packaging Dimensions (L x W x H)  51 x 13 x 47 inches
  • Weight: 265 lbs
  • Weight with Packaging: 353 lbs
  • Material: SUS304 Stainless Steel and acrylic or stainless steel barriers


DRAWING & DIMENSIONS

INSTALLATION

Installation Services Available
See our portfolio of work Here.

*Please note: Freight is not included and will be billed separately. Contact us for a quote.



Additional information

Weight 353 lbs
Dimensions 51 × 13 × 47 in
