Turnstile Security Entrances

Submitted to:
Ahold Delhaize USA
Retail Business Services
ADUSA Distribution
Bethlehem, Pennsylvania

Submitted by:
Patrick McAllister
www.TURNSTILES.us, Inc.
July 2022

The team at TURNSTILES.us is honored to present our Turnstile Entrance Solutions. Please find the selected equipment information listed below. We appreciate the opportunity to work with you.

Turnstile Security Entrances

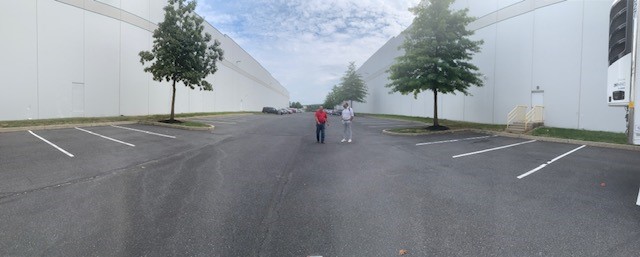

Location Photos

Beth 1
Beth 2
Beth 3

Equipment Data

EQUIPMENT

(3) Full Height Single Turnstiles
(3) Full Height ADA Gates
(3) Battery Powered Alarm for Panic Bar
(3) Upgrade to Panic Bar Exit Device
(3) Custom Entrance Enclosures
(12) Aluminum Card Reader Plates
(1) IX-MV Audio and Video Master Station
(1) IX-MV Audio and Video Door Station
(1) IX Mobile App Gateway
(1) Wiring Package
Evolv Weapons Detection Systems

SERVICES

Field Labor & Travel
(2) Installers
(TBD) Days Field Labor
(2) Days of Travel
Customer Will Provide Conduit
Uncrating and Removal of Debris
Provide Point-to-Point Schematics for all Trades
Test Operation of All Units
Owner Training
Travel and Accommodation

Engineering Drafting Programming
Provide AutoCAD Equipment Location Detail
Point-to-Point Schematics
Initial Factory Programming
Remote Desktop Assistance
Software Integration
Shipping and Crating

Click images for more information

Beth 1

# 2022-352031 – Beth 1
(1) AG30-T Black Powder Coated Full Height Turnstile
(1) Bidirectional Key Override Set
(1) Black End Caps
(2) Card Reader Mounting Plates for Turnstile
(1) ADA Gate
(1) Battery Powered Alarm for Panic Bar
(1) Card Reader Mounting Plate for ADA Gate
(1) Evolv Weapons Detection Single Lane

Beth 2

# 2022-352031 – Beth 2
(1) AG30 Black Powder Coated Full Height Turnstile
(1) Bidirectional Key Override Sets
(1) Black End Caps
(2) Card Reader Mounting Plates for Turnstile
(1) ADA36-ADA Black Powder Coated Full Height Gate
(1) Battery Powered Alarm for Panic Bar
(1) Card Reader Mounting Plate for ADA Gate
(1) Evolv Systems Single Lane Lease



*It is suggested to remove the concrete block along the wall to clear the path for the equipment as shown.

* It is also suggested to add a pony wall or barrier on either side of the Evolv lane.

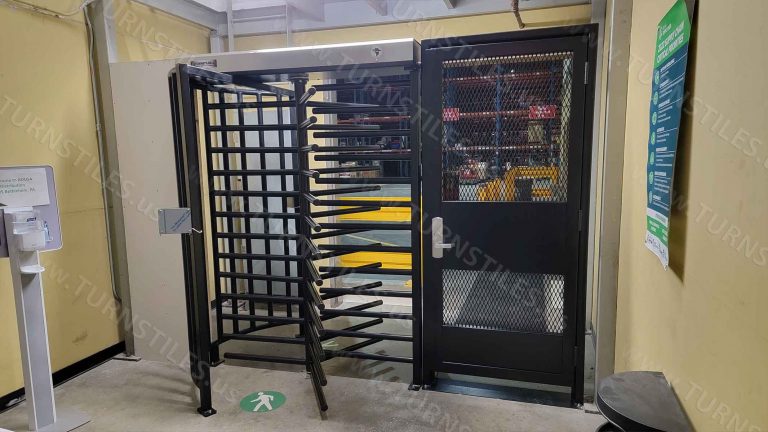

Beth 3

# 2022-352031 – Beth 3
(1) AG30 Black Powder Coated Full Height Turnstile
(1) Bidirectional Key Override Set
(1) Black End Caps
(2) Card Reader Mounting Plates for Turnstile
(1) ADA Gate
(1) Battery Powered Alarm for Panic Bar
(1) Card Reader Mounting Plate for ADA Gate
(1) Removal of Existing Door and Wall Space

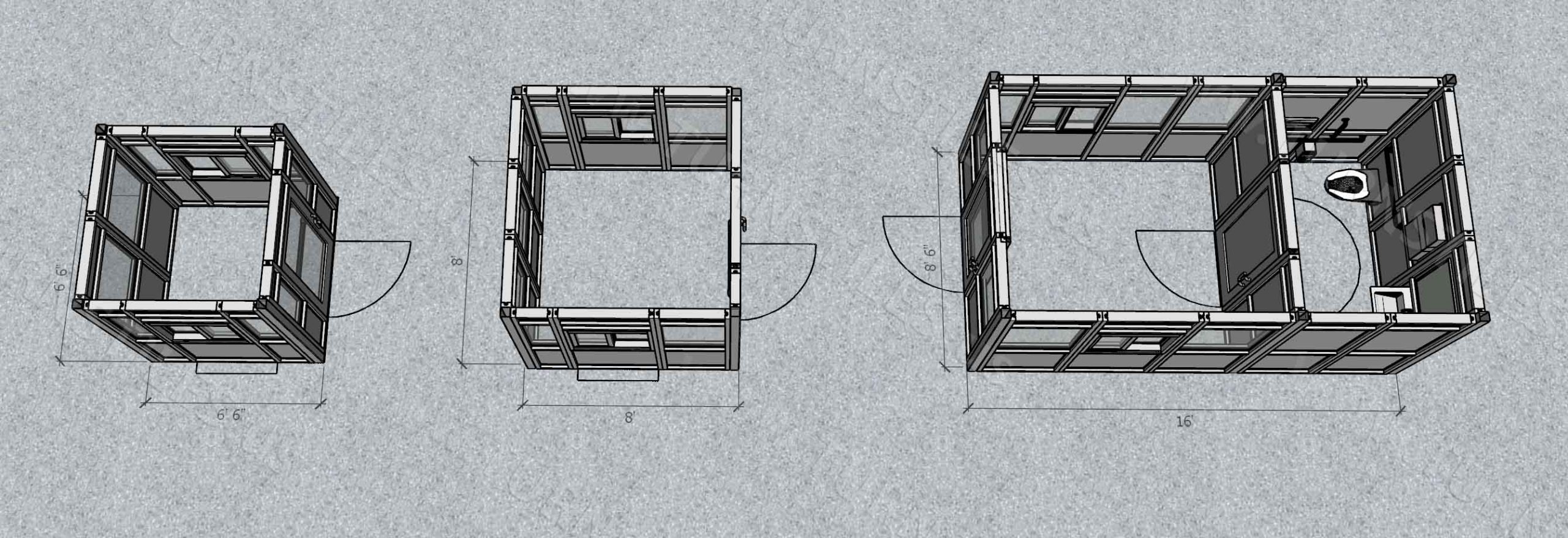

Add On Guard Offices

# 2022-352729 – Guard Office #1

Outbound 8.5’ x 16′ with Bathroom

(1) 8.6’ X 16’ Guard Office with Bathroom
*Included with Guard Office
Insulated Roof System
Store Front Walls
Electronic Door
(2) Transaction Windows
Electrical Package
Convenience Outlets
Countertop
Non-Slip Flooring
Heating and Air Conditioning Unit
Safety Kit
Fire Extinguisher
Flashlight
*Included with Bathroom
Toilet
Sink
Towel Dispenser
Hot Water Heater
Exhaust Fan

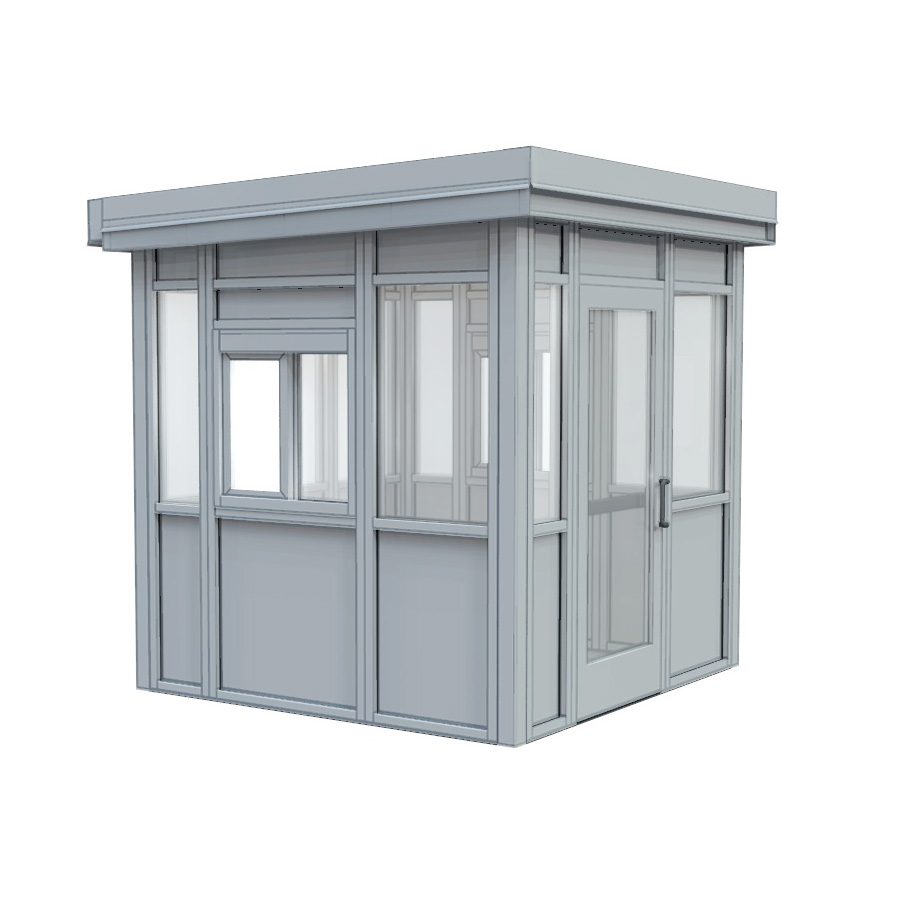

# 2022-352736 – Guard Office #2

Inbound 8×8′

(1) 8.8’ X 8.8’ Guard Office
*Included with Guard Office
Insulated Roof System
Store Front Walls
Electronic Door
(2) Transaction Windows
Electrical Package
Convenience Outlets
Countertop
Non-Slip Flooring
Heating and Air Conditioning Unit
Safety Kit
Fire Extinguisher
Flashlight

# 2022-352737 – Guard Office #3

Employee 6.5’x6.5′

(1) 6.6’ X 6.6’ Guard Office
*Included with Guard Office
Insulated Roof System
Store Front Walls
Electronic Door
(2) Transaction Windows
Electrical Package
Convenience Outlets
Countertop
Non-Slip Flooring
Heating and Air Conditioning Unit
Safety Kit
Fire Extinguisher
Flashlight



Previous Renditions

# 2022-352031 - Beth 1 with Guard Office

# 2022-352031 – Beth 1
(1) AG30-T Black Powder Coated Full Height Turnstile
(1) Bidirectional Key Override Set
(1) Black End Caps
(2) Card Reader Mounting Plates for Turnstile
(1) ADA Gate
(1) Battery Powered Alarm for Panic Bar
(1) Card Reader Mounting Plate for ADA Gate
(1) Chain Link Entrance Enclosure
(1) Guard Office
Store Front Walls
Electronic Door
Transaction Window
Electrical Package
Convenience Outlets
Countertop
Non-Slip Flooring
Heating and Air Conditioning Unit
(1) Removal of Existing Door/Glass
(1) Evolv Systems Single Lane Lease

* It is suggested to replace the outer entrance door with double-doors as shown. This will allow for smoother, aligned passage through the Evolv lane.

#2022-352029 - Polycarbonate Option 1

# 2022-352029 – Beth 1
(1) P60 Aluminum and Lexan Full Height Turnstile
(1) 6500 Electronic Control Head
(2) Card Reader Mounting Plates for Turnstile
(1) T36 Aluminum and Lexan ADA Gate
(1) Battery Powered Alarm for Panic Bar
(1) Card Reader Mounting Plate for ADA Gate
(1) Polycarbonate Entrance Enclosure
(1) Guard Office
Store Front Walls
Electronic Door
Transaction Windows
Electrical Package
Convenience Outlets
Countertop
Non-Slip Flooring
Heating and Air Conditioning Unit

# 2022-352029 – Beth 2
(2) P60 Aluminum and Lexan Full Height Turnstiles
(2) 6500 Electronic Control Heads
(4) Card Reader Mounting Plates for Turnstiles
(1) T36 Aluminum and Lexan ADA Gate
(1) Battery Powered Alarm for Panic Bar
(1) Card Reader Mounting Plate for ADA Gate

# 2022-352029 – Beth 3
(1) P60 Aluminum and Lexan Full Height Turnstile
(1) 6500 Electronic Control Head
(2) Card Reader Mounting Plates for Turnstile
(1) T36 Aluminum and Lexan ADA Gate
(1) Battery Powered Alarm for Panic Bar
(1) Card Reader Mounting Plate for ADA Gate
(1) Removal of Existing Door

#2022-352030 - Polycarbonate Option 2

# 2022-352030 – Beth 3
(1) P60 Aluminum and Lexan Full Height Turnstile
(1) 6500 Electronic Control Head
(2) Card Reader Mounting Plates for Turnstile
(1) T36 Aluminum and Lexan ADA Gate
(1) Battery Powered Alarm for Panic Bar
(1) Card Reader Mounting Plate for ADA Gate
(1) Removal of Existing Door

Previous Rendition: Outdoor Entrance
5/5

TURNSTILES.us Advantage

We are a One Stop Shop

  • We provide Turn-Key Service with Value-Added Engineering
  • We provide Access Control Elements integrated with the Turnstiles
  • 32 Years of Experience
  • Pride in Craftsmanship
Kennedy Tank - University of IL
Enclosed Glass Turnstile Canopy
Stop & Shop - Assonet, MA
Security Walkway Entrance
JG Kern - Sterling Heights, MI
Full Security Entrances w/Facial Recognition
Fanatics - Multiple Locations
P60 Aluminum and Lexan Turnstiles

We appreciate the opportunity to work with you on this project.
