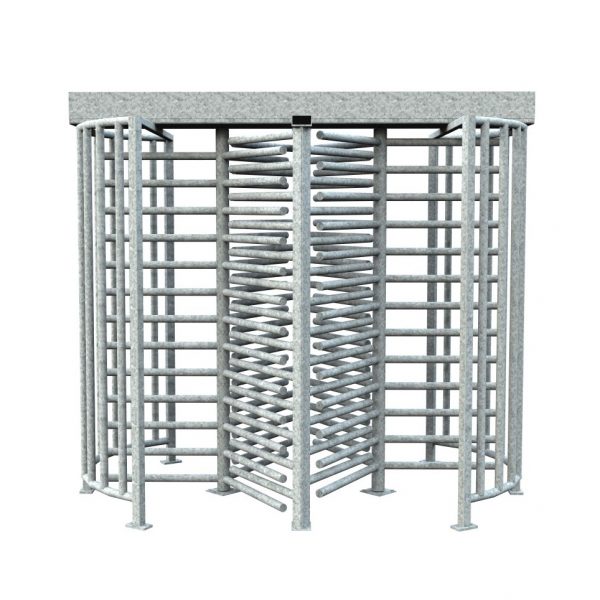

AG-27-TT Full Height Tandem Turnstile

Please Login for Pricing

Login or Sign Up

Description

The AG-27-TT is a heavy-duty, full-height high-security tandem turnstile.  A tandem turnstile is essentially two turnstiles in one and has a smaller footprint than two single turnstiles put together. A tandem turnstile is used when more than one turnstile is needed in high-traffic areas. It also has a reduced footprint of 8’ 6” wide – whereas two single turnstiles side by side have a total width of 11’.

The function of the AG-27-TT is to provide controlled access when entering or exiting a facility where high flow traffic is present. It can achieve this both mechanically (no access control system/software, such as a pool gate where the passage would be used for only exiting and no entry), or electronically (with an access control system, card readers, fingerprint readers, etc for keeping track of who is on and off-site). It is constructed in the USA. Matching AG-36-ADA Door, Filler Panels, and Reach-Through Barriers are also available.



Data Sheet – AG Series Full-Height Tandem Turnstiles

Turnstile Color and Finish Chart

Installation Manual – AG Series Tandem Turnstile

Production Worksheet for Manufacturing – Tandem Turnstile

Correct vs. Incorrect Center Rotation

Turnstile  Maintenance



STANDARD FEATURES

  • Full-Height Tandem Turnstile
  • Included:
    • (4) Card Reader Mounting Plates
    • (130) Plastic End Caps on all Arms
    • (2) Bidirectional Key Override Sets (turnstile can be unlocked manually by key, in either direction for service or temporary events where locking isn’t required)
    • (2) Modular Locking Mechanisms (fail-safe or fail-secure, clockwise or counterclockwise)
  • All Stainless Steel Hardware
  • Spline Shaft, Collar, Bearing, and Bottom Flange are Corrosion-Resistant Stainless Steel
  • Extra Thick Mounting Brackets for added Security
  • Durable Galvanized Finish
  • Made in America
  • Electrical Specifications:
    • Input voltage: 100-220 VAC
    • Frequency: 50/60 Hz
    • Operating Voltage: 30 VDC
    • Operating Current: 0,2A



ADDITIONAL OPTIONS



FINISH CHOICES

  • Galvanized
  • Powder Coated over Raw Steel (See color chart)
  • Powder Coated over Galvanizing
  • Powder Coated over Stainless Steel
  • Custom colors available upon request

INSTALLATION

(2) Tandem Turnstiles with Extra Wide ADA Gate and CanopySee our installation for Kroger here.

Contact TURNSTILES.us for installation and shipping information.





Contact us for a quote!

Additional information

Weight 1200 lbs
Finish

Galvanized, Powder Coated (black), Powder Coated (black) over Galvanized, Stainless Steel

Controls

Mechanical, Electric One-Way, Electric Two-Way
