OL-XLT Extra-Wide Tripod Turnstile

Please Login for Pricing

The OL-XLT Extra-Wide Tripod Turnstile combines hearty construction with robust design, offering a durable solution for managing pedestrian traffic in various environments.



Login or Sign Up

Description

Introducing the OL-XLT Extra-Wide Tripod Turnstile, your bigger, better, heavier-duty solution for managing pedestrian traffic at your facility. Engineered for durability and robustness, their substantial size and weight render them immovable, ensuring steadfast performance while accommodating individuals of larger stature. With an impressive XL unit measuring 40.39 inches from the back of the cabinet to the tip of the arm, these turnstiles fill a 42-inch space and leaving a 23″ passage opening. Crafted in the USA from premium domestic 304 Stainless Steel, with the option of a brushed steel or powder-coated color finish, they epitomize quality craftsmanship. Versatile and adaptable, these turnstiles are tailored to meet diverse needs, whether it’s optimizing access control in a cafeteria utilizing our EntraPASS Meal Tracking Systems, or safeguarding high-security environments like federal prisons, schools, public buildings, banks, administrative offices, retail outlets, railway terminals, and airports. Complementing your installation are matching filler barriers, customizable features, and comprehensive design and installation services, ensuring a seamless integration tailored to your exact requirements.



FEATURES

  • Waist-High Turnstile Barrier, Rotator with 3-Arms
  • Extra-wide design measures just over 40 inches. It fits a minimum 42-inch space and has a 23-inch Passage Width.
  • Enhanced Vandal-Resistant Covers that conceal wiring
  • Clean, polished, streamlined appearance
  • Made in the USA from high-grade domestic 304 Stainless Steel, for durability, robustness, and resistance to corrosion.
  • Finish choice of brushed steel or powder-coated color to match aesthetic preferences and facility design.

OPTIONS

  • Card Reader Window – Adds a cut-out with a plexiglass window in the lid for reader mounting. Reader bracket included.
  • Directional Lights – Adds Red/Green LED lights to the lid.
  • Base Model – OL-20-TP
  • Enhanced Model with Portable Base – OL-20-ETPP
  • Add Access Control Hardware with your choice of Reader
  • Compatible with EntraPASS Access Control Software
  • Matching partition or railing to secure the entire area
  • Finish Options:
    • Stainless Steel
    • Powder Coated Body (Standard is Black. Choose custom color by RAL# www.ralcolor.com)

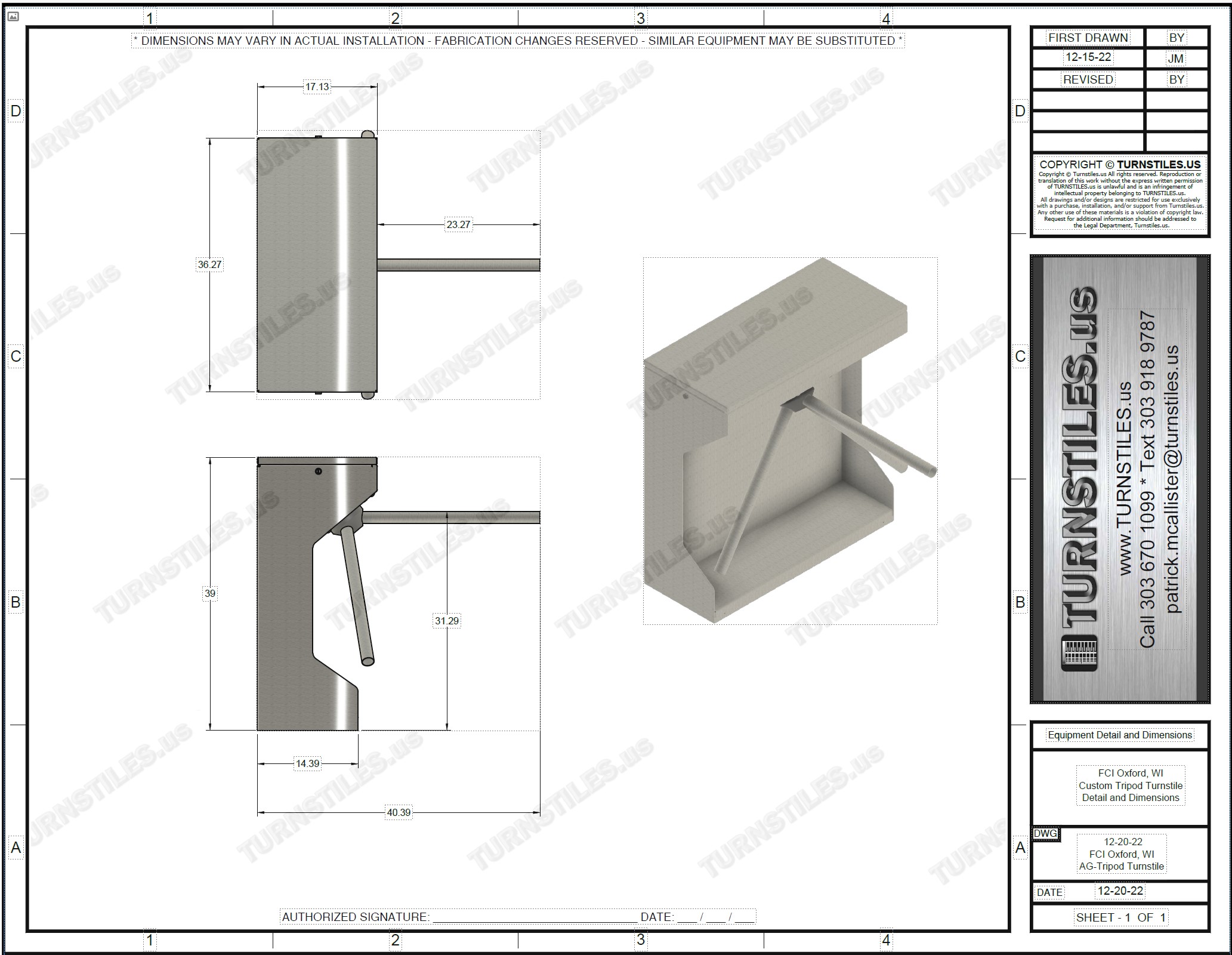

DRAWING & DIMENSIONS

SPECIFICATIONS

  • Operating voltage: 24 V DC ±10%
  • Current Power consumption: max. 4.4 А
  • Power failure operation: Rotating Arms Turn Easily by Hand
  • Fire alarm operation: Power can disconnect for free rotation in both directions. Drop-Arm safety feature available.


INSTALLATION

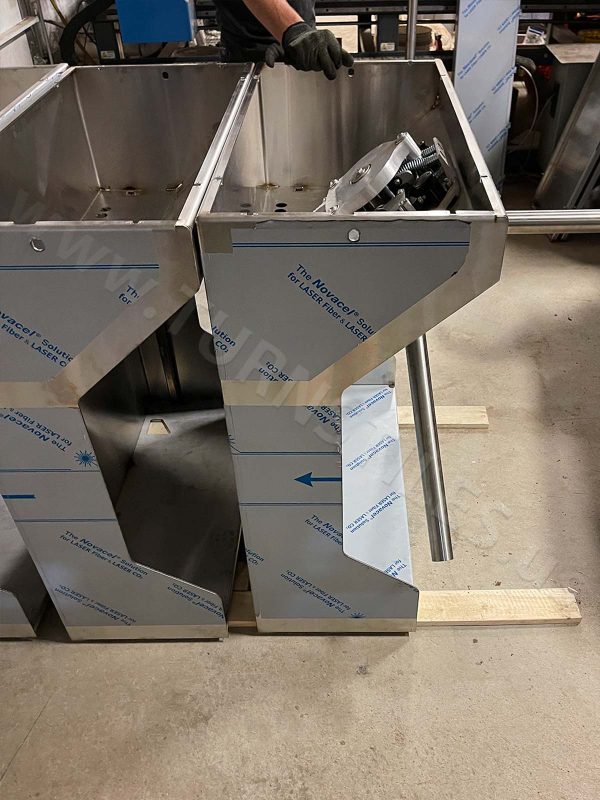

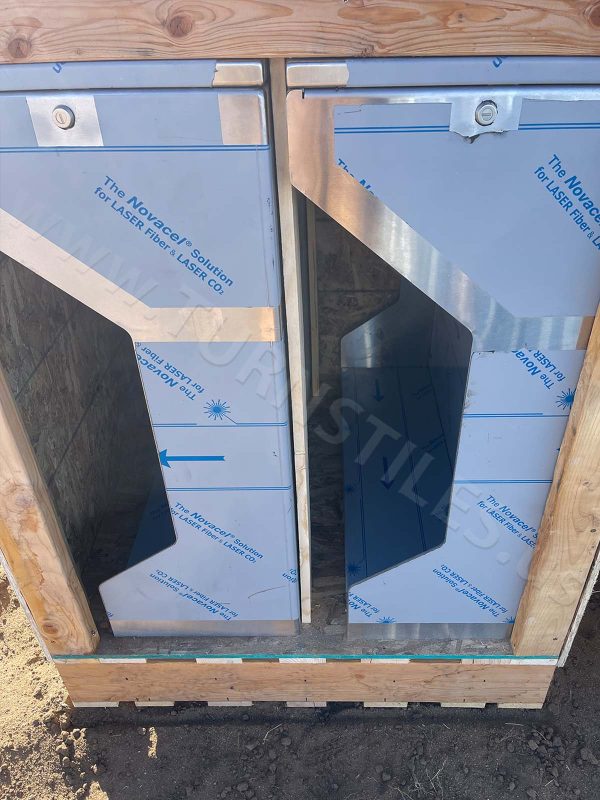

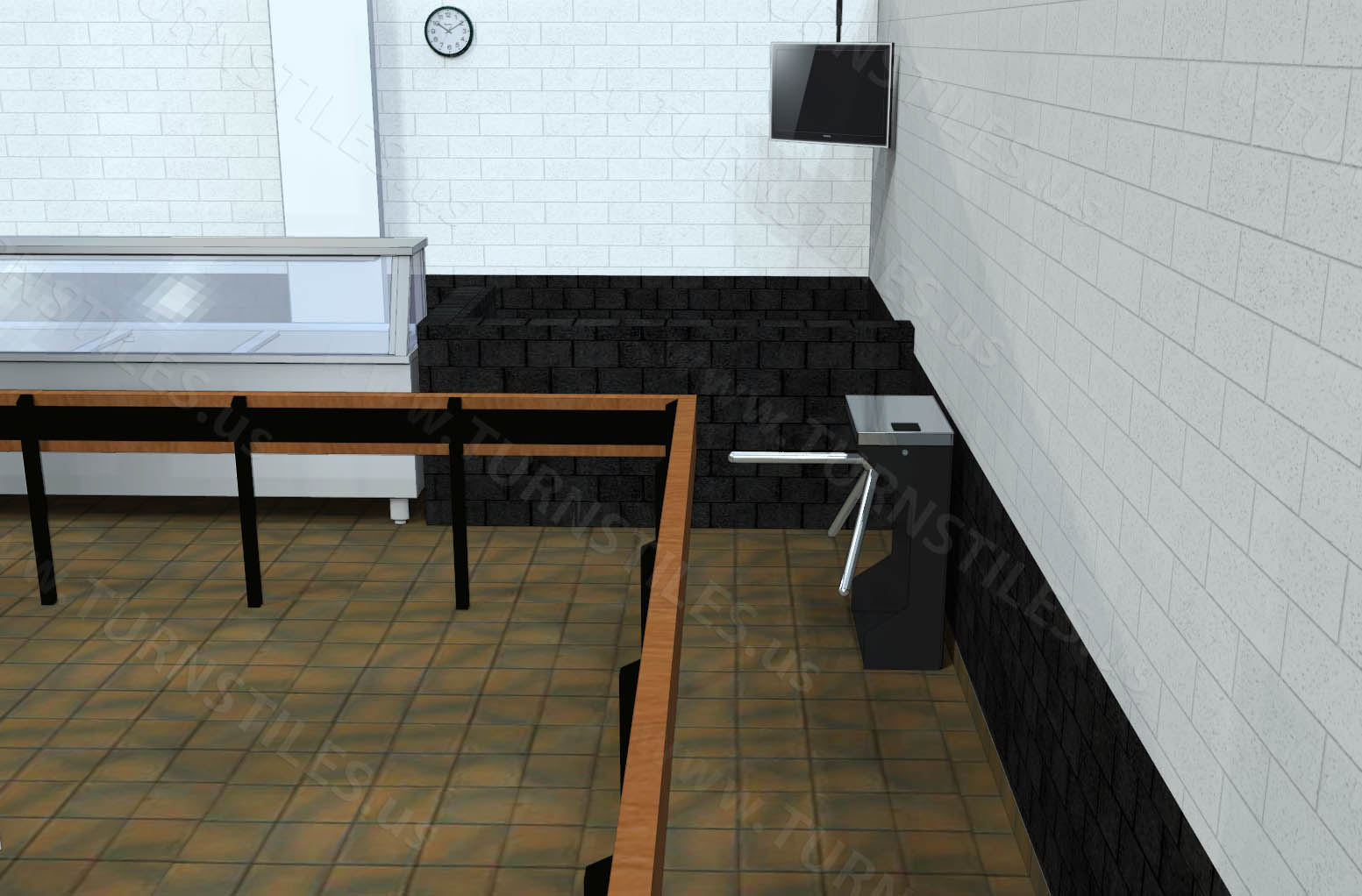

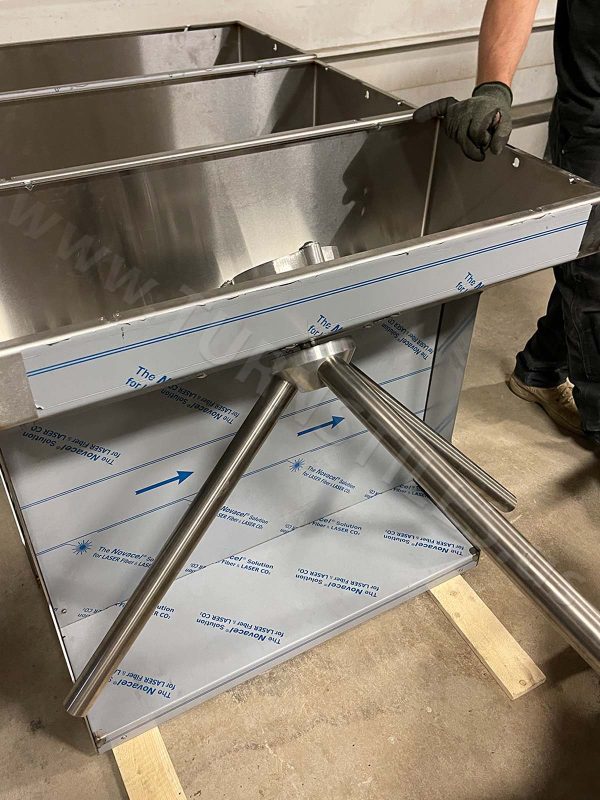

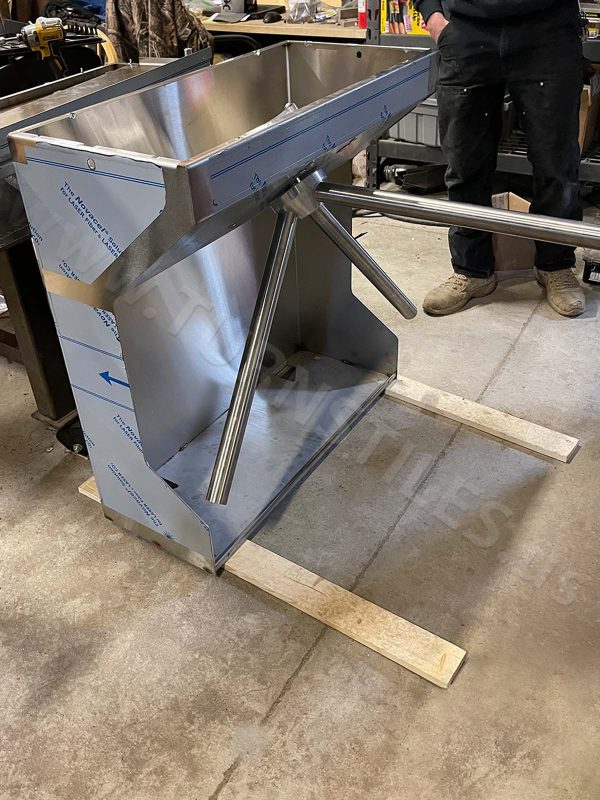

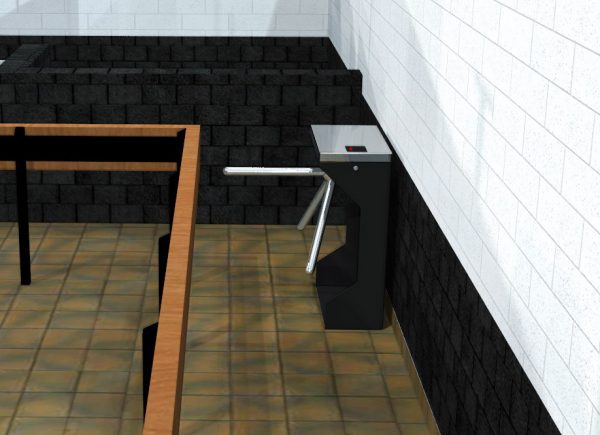

Above: The OL-XLT shown utilized a as part of a Meal Tracking System. See more photos from our installation at FCI Oxford, WI.

Contact TURNSTILES.us for installation information and freight quote. Available to book now!









Additional information

Weight 290 lbs
Dimensions 41 × 40 × 40 in
