BUNGE 'Flash' – Avondale, LA
Submitted to:
BUNGE
Avondale, LA
Submitted by:
www.TURNSTILES.us, Inc.
July 2024 – August 2024
The team at TURNSTILES.us is honored to provide our EntraPASS Access Control System and professional engineering, drafting, and installation to BUNGE. Please find featured equipment information, photos, and project documentation below. We appreciate the opportunity to secure your facility.

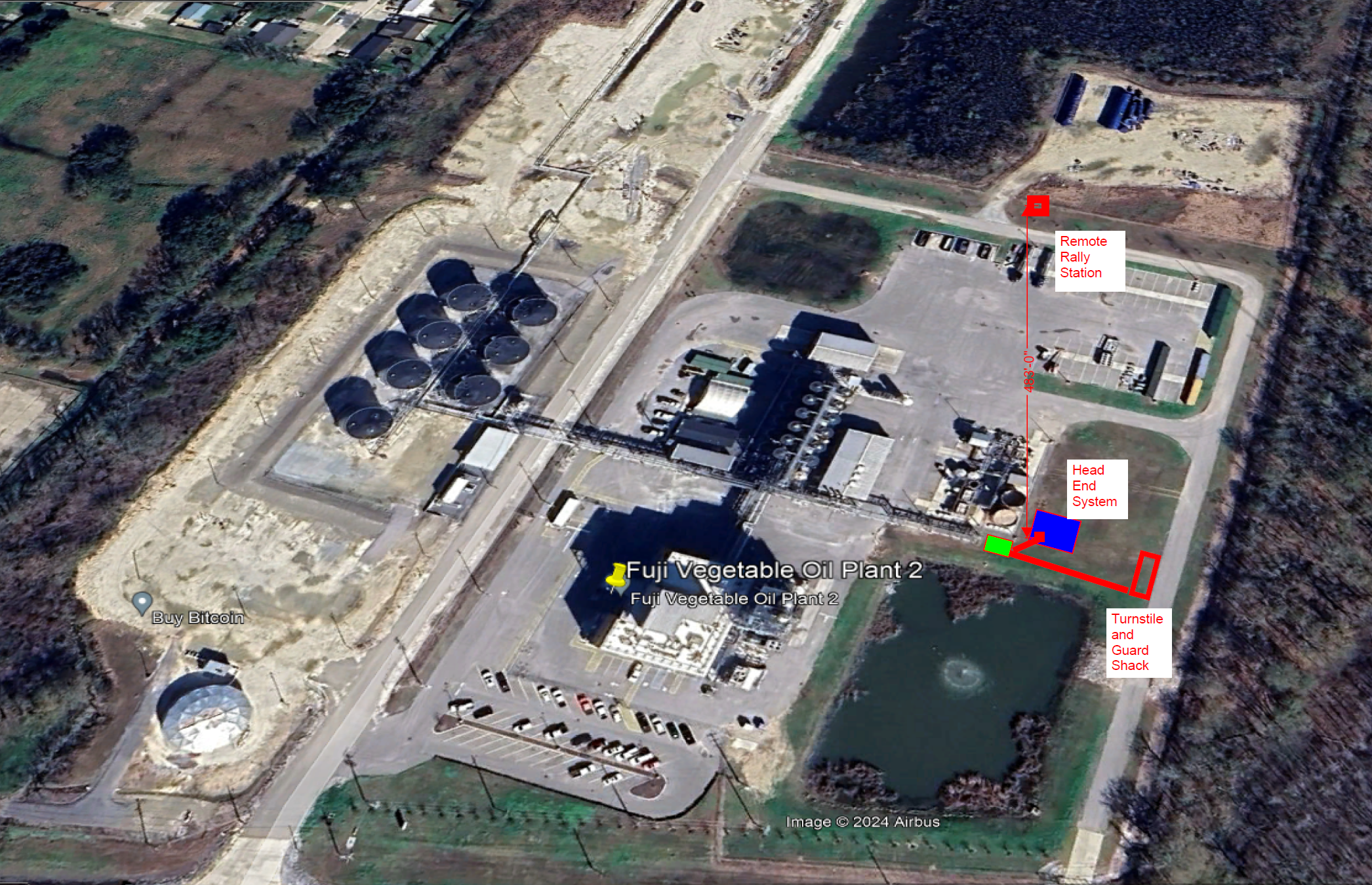

EntraPASS Global Access Control System
EQUIPMENT
Head End System
(1) EntraPASS Global Edition Software License
(1) Dell All-In-One Workstation (Server)
Turnstiles
(2) HT431P Portable Turnstiles, Galvanized, 2-Way Electric
(2) KT-2 – Reader Controller
(2) KT-2 – Power Supply with Battery
(4) HID ProxPoint Plus 6005 Reader
(4) Turnstile Relay and Base
Interior Checkpoint Door Controls (3 Doors Entry)
(3) KT-2 – Reader Controller
(3) KT-2 – Power Supply with Battery
(3) HID ProxPoint Plus 6005 Reader
(3) Turnstile Relay and Base
Solar Powered Rally Station (Mustering)
(1) KT-2 – Reader Controller
(1) KT-2 – Power Supply with Battery
(1) HID ProxPoint Plus 6005 Reader
(1) EnGenuis Station6 2×2 Patch – Wireless Point-to-Point Bridge
(2) EnGenuis Switch 8 Port
(1) Top of Pole Mount for (6) Panels – (2) Vertical Poles
(4) Schedule 40 – 4″ Vertical Pipes
(2) Schedule 40 – 3″ Vertical Pipes
(4) Solar Module Panel – REC Solar, Alpha PURE Series 390W
(1) Inverter – Victron MultiPlus inverter & charger 2000 Watts
(1) Charge Controller – Victron SmartSolar MPPT 250/60-Tr
(2) Battery – Discover energy AES professional 1.5 kWh 25.6V 60AH
(1) Ameresco Solar BBA-6 solar battery box
(*) See Full Equipment List Here
SERVICES
AutoCAD Equipment Detail and Dimensions
Point-to-Point Schematic
Initial Database Setup
Remote Desktop Assistance
Installation of Access Control
Training on EntraPASS
*Electric and conduit provided to the site by owner
*Device mounting – Door Controllers on Doors, Readers on Walls, Solar Panel Pole Array Mounting System, etc. by owner
Installation Photos & Matterport 3D
AutoCAD Documentation
Equipment Data & Documentation
DOCUMENTATION
Turnstiles
HT431P Portable Turnstile – Data Sheet
Turnstiles – Correct Center Rotation
Access Control Hardware
EnGenius Station Series – Data Sheet
EnGenius ENH500AX EnStation6 – Data Sheet
EnGenius POE 8-Port Switch
HID ProxPoint Plus 6005 Card Reader – Data Sheet
HID ProxPoint Plus 6005 Card Reader – Install Manual
HID 125 kHz Prox Card Readers – Data Sheet
KT-2 Controller – Data Sheet
KT-2 Controller – Quick Start Guide
KT-2 Controller – Installation Guide
RBSN Relay, Base and SnapTrack – Data Sheet
Saginaw Enclosure – Data Sheet
18AWG 2C Shielded Cable
Turnstile and Door Lock Cable
16AWG 2C Shielded Cable
RS485 Communication BUS Cable
Solar-Powered Rally Station
| Data Sheet | SolaTurn FLASH4 Solar Power Package – Components | |
 | 4 | Solar Panel Modules – REC Solar, Alpha PURE Series 390W PV Module, 132 half-cut Bifacial heterojunction cells, Vmp: 40.6,Imp: 9.61, Voc: 48.4, Isc: 10.38, 71.7″ x 40″ x 1.2 (30mm), 45 lbs |
 | 1 | Inverter – Victron MultiPlus inverter & charger. 2000 Watts, 24 Volts DC, 120 Volts AC, 50 Amp charger, VE. Bus. |
 | 1 | Charge Controller – Victron SmartSolar MPPT 250/60-Tr solar charge controller. 12, 24, 36, 48 volts DC, 60 Amps max. |
 | 2 | Battery – Discover energy AES professional 1.5kWh 25.6V 60AH with heating, on/off Key, LYNK COMM PORT. 10.2″ x 7.1″ x 10.1″, 30.7 lbs. |
 | 1 | Solar Battery Box – Ameresco Solar BBA-6 , holds 6 group 27 batteries, NEMA 3R,4 and 4X. 40.12″ x 25.25″ x 17.125, 61 lbs. |
 | 2 | Mid Clamp for PGRM Panel Mount. Made for 3″ SCH40 pipe |
 | 2 | End Clamp for PGRM Panel Mount. Made for 3″ SCH40 pipe |
 | 1 | True DC Solar Isolator – IMO SI32-PEL64R-4, Enclosed DC Switch IP66 |
 | 1 | Heyco Strain Relief – 1/2 in 1000V. Accepts two 6mm PV wires. Nut is included. |
 | 1 | MidNite DC – Solar surge protector for DC circuits. Rated for 300 volts DC nominal and 250 volts AC nominal. |
| 1 | MidNite AC – Solar surge protector for AC circuits. Rated for 250 volts AC nominal and 300 volts DC nominal. |
| 1 | LYNK LITE Communication Gateway – Discover Energy Systems 950-0040 intended to work with AES PROFESSIONAL (DLP) batteries. Doesn’t work with AES RACKMOUNT. | |
| 1 | MC4 Solarline 2 (latching) Extender Cable – 10 AWG, 50 ft, Male to Female, 2kV single jacket 1kV rated connectors. | |
| 1 | Circuit Breaker 100 amp -Bussmann MRCB breaker 100 amp – DC 12-48 volts w/switch | |
| 1 | Circuit Breaker 150 amp -Bussmann MRCB breaker 150 amp – DC 12-48 volts w/switch | |
| 12 | (12ft) Black Cable – #2 AWG UL MTW CABLE, Stranded Copper Wire | |
| 12 | (12ft) Red Cable – #2 AWG UL MTW CABLE, Stranded Copper Wire | |
 | 4 | Stud Ring Connector #2 x 5/16″ – tinned copper |
 | 10 | Stud Ring Connector #2 x 3/8″ – tinned copper |
| 4 | Black Heat Shrink – for #4 AWG, 1.5 inch long. | |
| 8 | Red Heat Shrink – for #4 AWG, 1.5 inch long. | |
| 3 | RJ45 UTP Cable 0.9 m – Network cable for VE.Can, VE.Bus, VE.net. Aritcle code: ASS030064920 | |
| 1 | Interface MK3-USB – VE. Bus to USB. Article code: ASS030140000 | |
 | 1 | Cerbo S-GX Communication Hub – Remote monitoring device for solar powered system. Dimensions: 6.07″ x 3.08″ x 1.9″ Article code: BPP900450120 |
 | 1 | T-Connector – Discover DLP CONNECTOR KIT 0.4M CABLE + T -DLP 0.4M cable + battery T connector kit |
| 1 | Battery Interconnect Network Cable – Discover DLP COMM CABLE 25’/7.6M NEMA (HOMERUN) – DLP 7.6m | |
| 1 | Shipping inbound | |
| 1 | Shipping outbound | |
| 1 | Labor – Electrical work to prewire the components in the enclosure. |
