Submitted to:
SK EcoEngineering
Commerce, Georgia
Submitted by:
www.TURNSTILES.us, Inc.
March 2023 – Present
The team at TURNSTILES.us is honored to provide our Turnstile Security Solutions to SK EcoEngineering. Please find the selected equipment information listed below. We appreciate the opportunity to secure your facility.
SK ecoengineering provides unrivalled services in Battery and Core materials for batteries including LiBS, hydrogen and eco-friendly projects, and power plants using technically-skilled manpower and experience gained from numerous projects around the world.
Turnstile and Gate Entrance System
AutoCAD Equipment Location Detail & Wiring
Cable for the (7) Locks:
WRE18/4-STR-PLEN-1000-WHITE
18/4 Stranded Bare Copper, Unshielded, Plenum
Jacket, White 1000ft Box
Overall Outer Cable Diameter: 0.172in (Shown in White)
Cable for the (8) Readers:
WRECAT5E-350-PLEN-1000-BLUE
Cat5e-350 MHz, 4 Twisted Pairs, 24 AWG,
Unshielded, Plenum Jacket, Blue 1000ft Box
Overall Outer Cable Diameter: 0.185in (Shown in Blue)
Equipment Data
USA Turnstiles, ADA Gate and Canopy with Access Control
- (3) AG30-T-GV-2E Full-Height Industrial Turnstiles
- (3) Control Head Configuration
- (6) Card Reader Mounts
- (1) AG36-ADA-GV Full-Height Gate
- (1) Panic Bar
- (2) Card Reader Mounts
- (2) Anti-Reach Barriers
- (2) Goose Neck Pedestals
- (1) 12×22′ BTC Basic Turnstile Canopy (add option)
- (1) EntraPASS Global Workstation
- (12) HID Multi-Class Card Readers RP-40

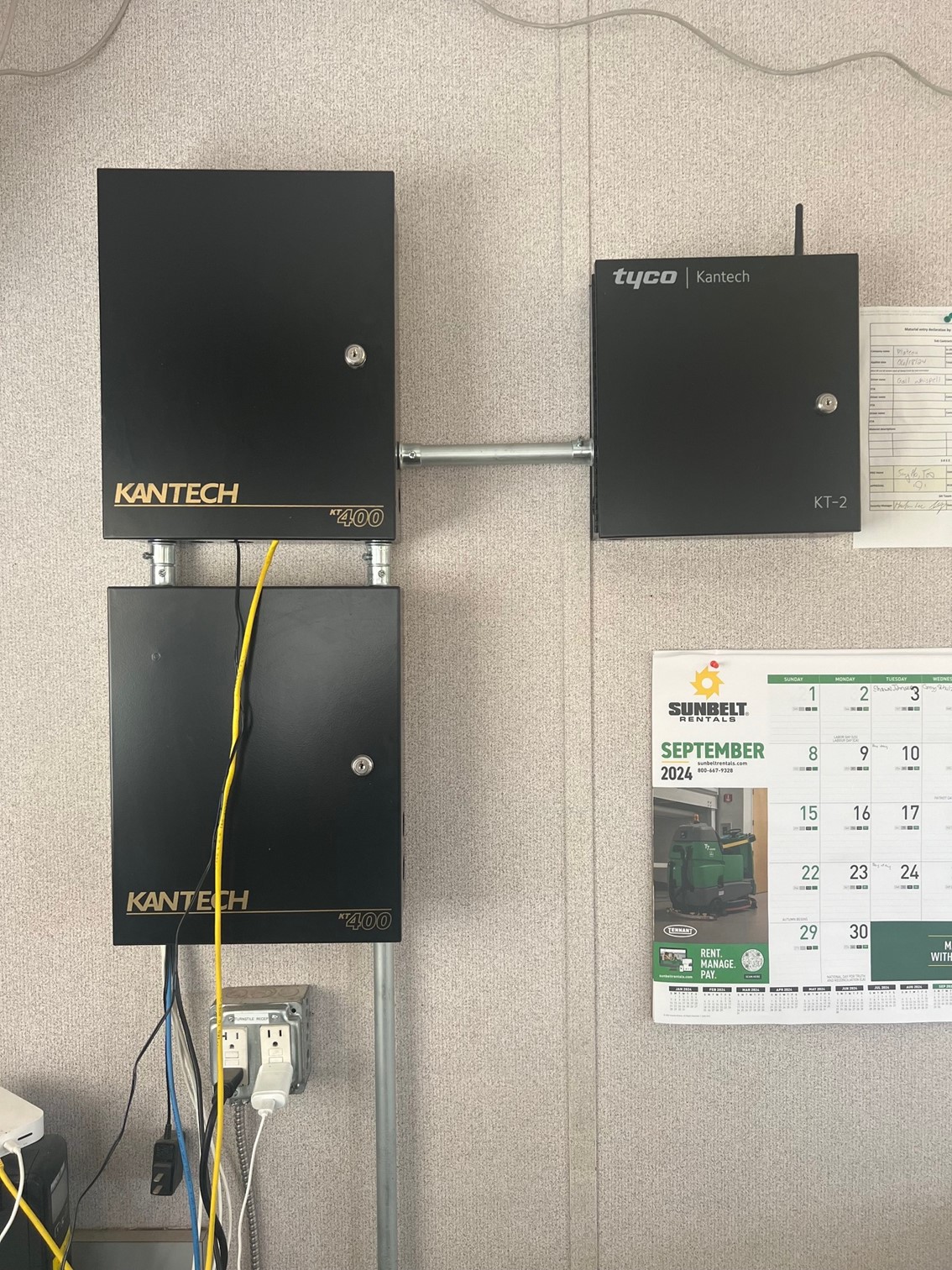

- (2) KT-2 Controllers
- KT-2 #1 = Auto Lane
- KT-2 #2 = Office
- (2) KT-400 Controllers
- KT 400 #1 = Turnstile #1 and ADA Gate
- KT 400 #2 = Turnstile #2 and Turnstile #3
- (1) 20/4 Plenium Coated Wire 1000′
- (1) Cat5 Wire 1000′
- (7) RBSN Relay
- (6) 5 Port Netgear Switch
- (6) Power Supplies
- (6) Battery Backups
- (1000) HID Prox II Cards
- (1) HID Fargo 4500e Photo ID Printer
SERVICES
- EntraPASS Programming and Database Integration
- EntraPASS Additional Door Programming
- Creating Card Groups with Access Levels
- Device Location Detail Graphic
- Includes One Year Of Remote Desktop Support
- Installation
- (8) Days of Field Labor with (2) Factory Installers
- (8) Days of Lodging, Vehicle Rental, Per Diem
*Final details shall be signed off prior to fabrication.
EntraPASS Global Edition
TURNSTILES.us Advantage
We are a One Stop Shop
- Over 36 Years of Installation Experience
- Pride in Craftsmanship
- We provide Turn-Key Service with Value-Added Engineering
- We provide Access Control Elements integrated with the Turnstiles
- U.S. Federal Government GSA Contract # GS-07F-9239S
- SBA Small Business HubZone Certification # 64753
