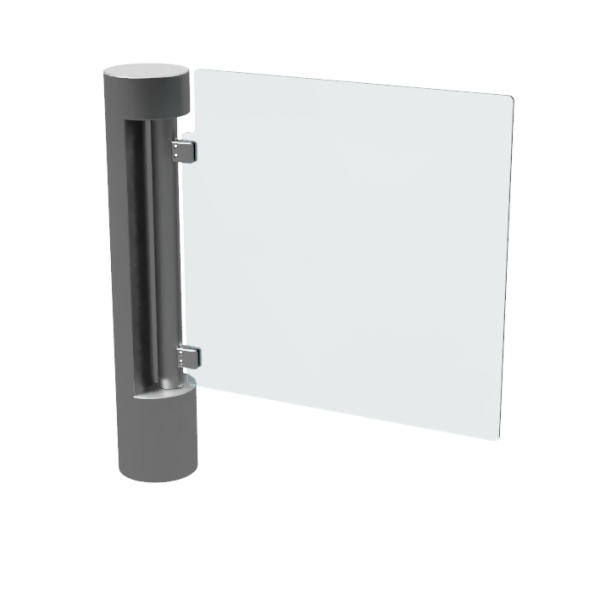

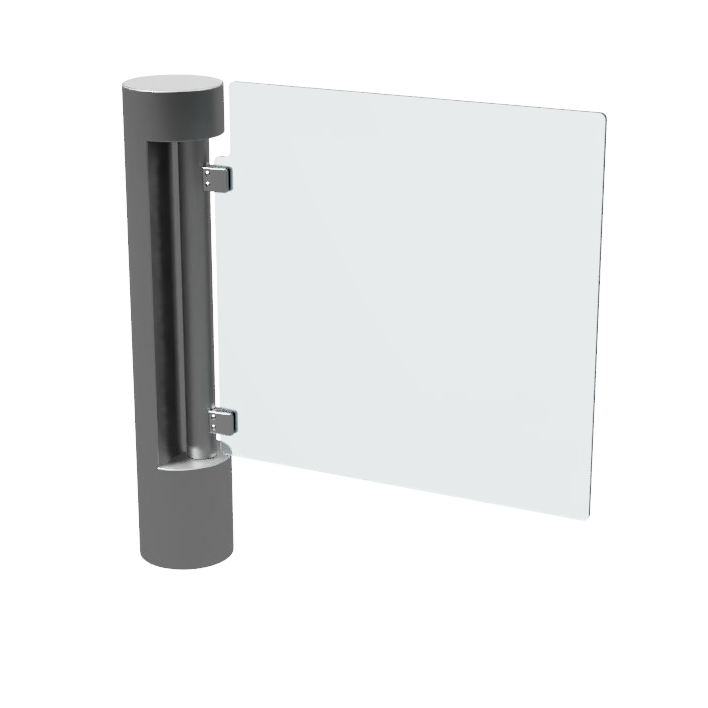

OL-MSG Waist High Motorized Swing Gate

Please Login for Pricing

The OL-MSG motorized swing gate is designed for managing pedestrian flows at entrance points of industrial facilities, banks, administrative buildings, retail outlets, railway terminals, airports, etc. It is recommended to meet the highest requirements for design and comfort.





Login or Sign Up

Description

The OL-MSG Motorized Swing Gate is designed for managing pedestrian flows at entrance points of public buildings, banks, administrative offices, retail outlets, railway terminals, airports, etc., meeting the highest requirements for design and comfort. Gates can be placed alongside other turnstiles or as standalone devices.  It is recommended to define the number of swing gates necessary to secure fast and convenient passage. The OL-MSG has a throughput rate and maximum working load of 12 persons/min. The gate features a one-way or bi-directional mode. Made with 304 Stainless steel. Matching filler barriers, customization options, design and installation services are available. Contact us for more information.

Data Sheet

Equipment Dimension Detail



STANDARD FEATURES

  • Waist-High Barrier Swing Gate
  • Sleek Cylindrical Steel Pedestal and Glass Wing
  • Motorized for no-touch, fully controlled rotation
  • Bi-Directional Swing (programmable for entry and/or exit)
  • ADA Width – 33″ Glass. Typical installation also allows a 2-3″ gap of space at the end of each gate.
  • Alarms with audible tone on tailgating or crawl-over attempts
  • American materials and beautiful craftsmanship



ADDITIONAL OPTIONS

  • Powder Coated Color Body
  • Matching partition or rail system to secure the entire area
  • Access Control Hardware
  • EntraPASS Entrance Management Software
  • We recommend adding an access control reader on a pedestal
    about 3-4 feet in front of the gate for natural approach and entry considering swing

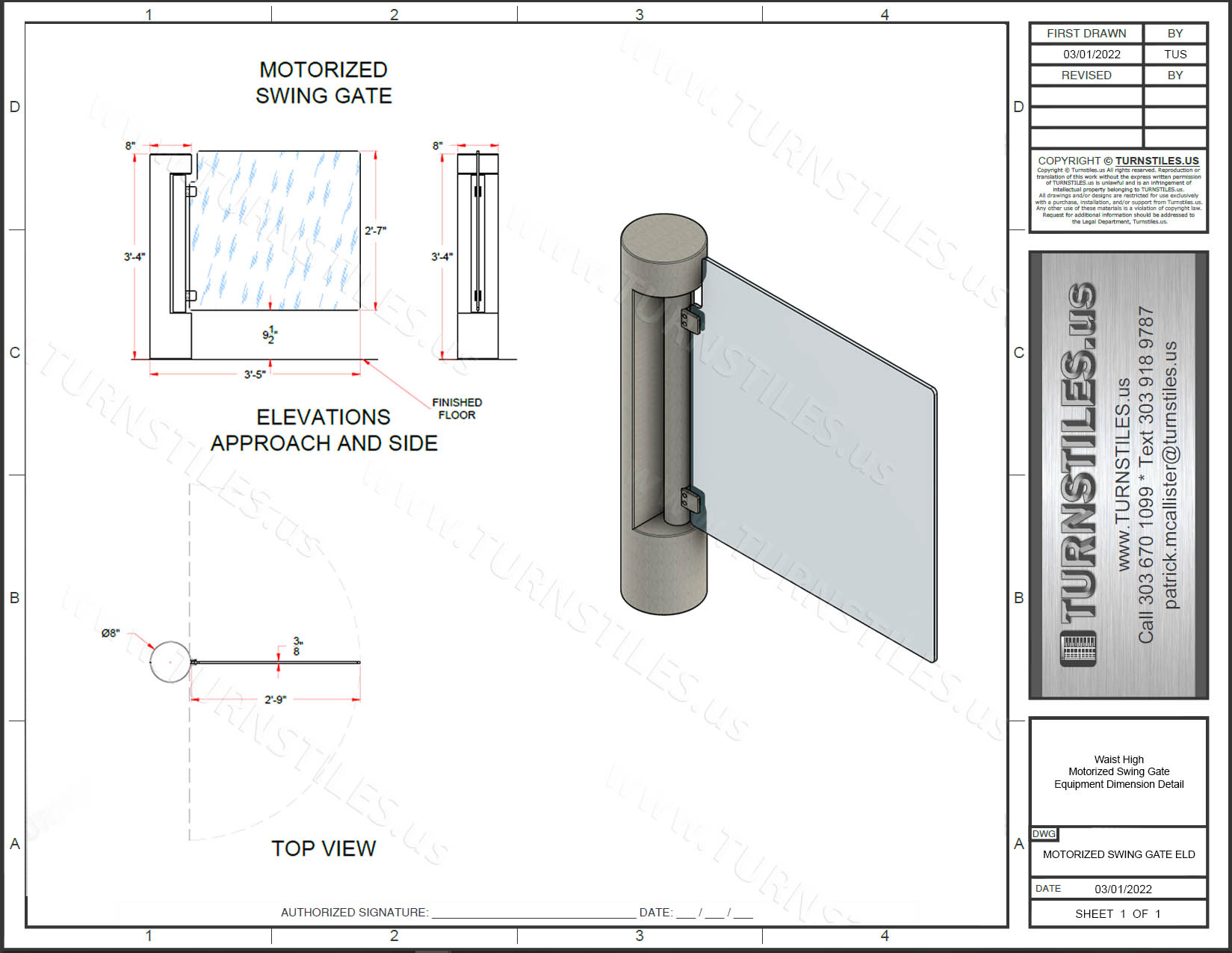

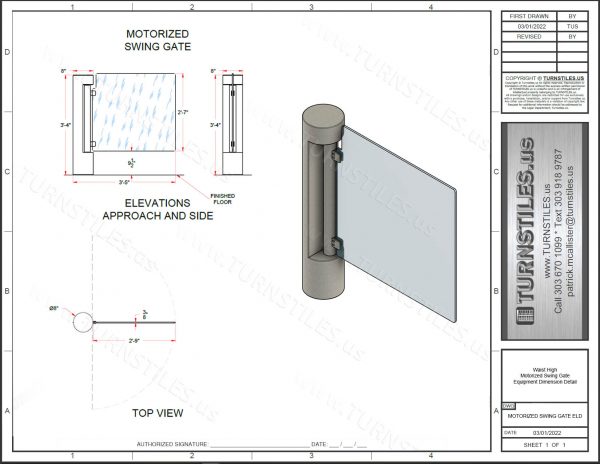

DRAWING & DIMENSIONS

SPECIFICATIONS

  • Operating voltage: 24 V DC ±10%
  • Current Power consumption: max. 4.4 А
  • Throughput rate in single passage mode: 12 persons/max
  • Collision detection: Current Sensing
  • Power failure operation: Glass Swing Turns Easily by Hand
  • Fire alarm operation: Trigger Allows Automatic Hold Open in Desired Direction
  • PLC trigger options: Trigger to Open One or Two-Directional Adjustable Timer and Counter


INSTALLATION

Contact TURNSTILES.us for installation information and freight quote. Available to book now!









Additional information

Weight 190 lbs
Dimensions 41 × 8 × 40 in
